Announcing Ritter “New Design” 6° Low Angle Pocket Cutting Machine – Introductory Pricing good through February 12th. Call Critical Power Systems for quotations, specifications, or literature. Demps 662-401-8831 or Annette 662-322-0461

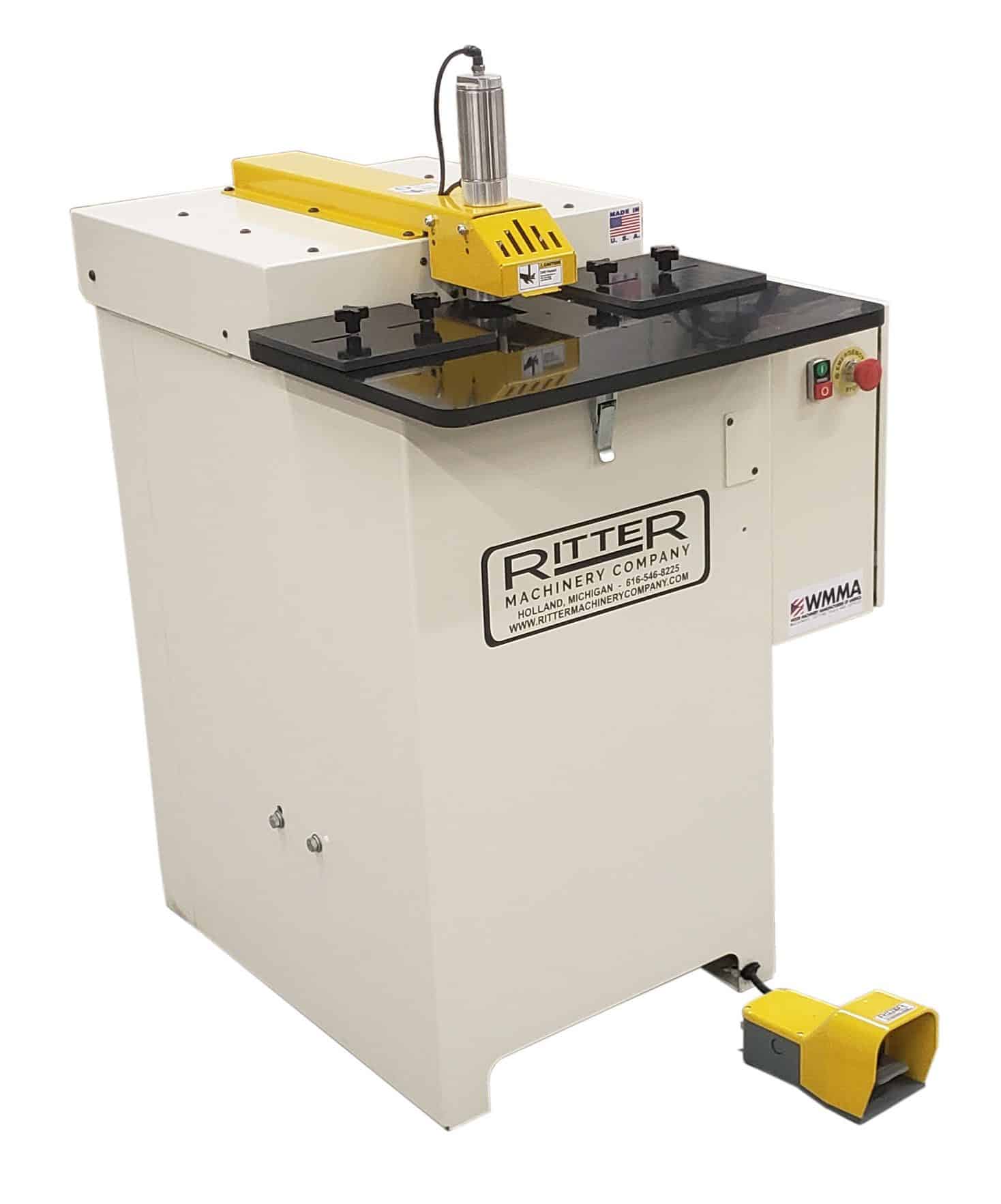

MODELS – R2061 / R2063

Introducing Two New Ritter Models
These pocket-cutting machines deliver low-angle (6°) machined pockets, complementing our original counterboring machines, which have been the industry standard for decades.

The two models differ in their power supplies and motor types.
R2061 – Single Phase Router Motors For Main and Drill
R2063 – Three Phase Main Spindle Motor with Air Drill

R2061– Specifications:

– Router Bit: 3/8” Solid Carbide, Rough Mill
– Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
– Router: 24,500 RPM, 11 A, 1.75 HP
– Drill: 31,000 RPM, 4.5 A
– Electrical: 110V, 15A
– Air: 2 CFM at 80 – 100 PSI
– Work height: 36″
– Footprint: 27.75″ x 20.5″
– Table Area: 15.75″ x 23.75″
– Dust Port: 4″

Shipping Weight: 300 LBS
Shipping Dimensions: 38″ x 25″

R2063 – Specifications:

– Router Bit: 3/8” Solid Carbide, Rough Mill
– Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
– Spindle Motor: 24,000 RPM, 8 A, 2 HP
– Air Drill: 22,000 RPM, .9 HP, 5.5 CFM
– Electrical: 230V, 3P, 15A
– Air: 5.5 CFM at 80 – 100 PSI
– Work height: 36″
– Footprint: 27.75″ x 20.5″
– Table Area: 15.75″ x 23.75″
– Dust Port: 4″

Shipping Weight: 325 LBS
Shipping Dimensions: 38″ x 25″
